External Antenna Survey Unit(ASU)

With the advancement of wireless communication technology, the network scale and user base of domestic wireless communication operators have witnessed rapid growth, accompanied by a substantial increase in the number of base stations. The resource censuses conducted by operators in various regions on an annual or semi-annual basis demand significant investments of time, manpower, financial, and material resources, while also elevating the risk factor associated with work at heights. Traditional resource censuses primarily rely on manual measurement, recording, aggregation, and data entry, with data management remaining in the primitive paper-based stage. This approach is fraught with drawbacks such as inaccurate measurements, susceptibility to errors, and limited controllability.

Program features

Strong ability to adapt to scenes

High accuracy in ranging and angle measurement, accurate pointing posture, and smooth experience

Support Beidou three global signal reception

Integrated high-precision MEMS sensor

High-precision heading angle measurement

Course angle initialization time is short

System is stable and reliable

IMU is compatible with Italian, French, German, Japanese and domestic products

Solution

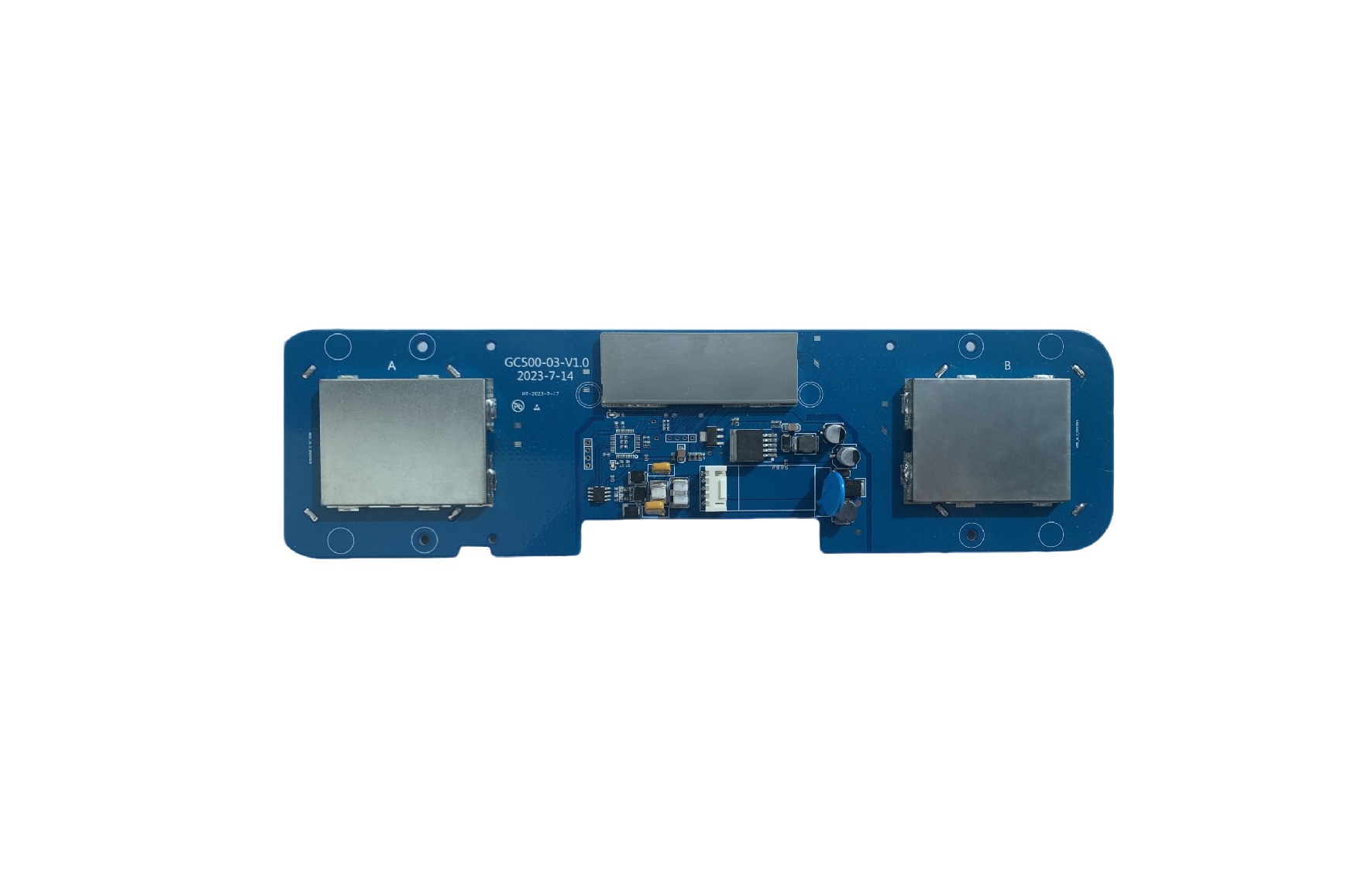

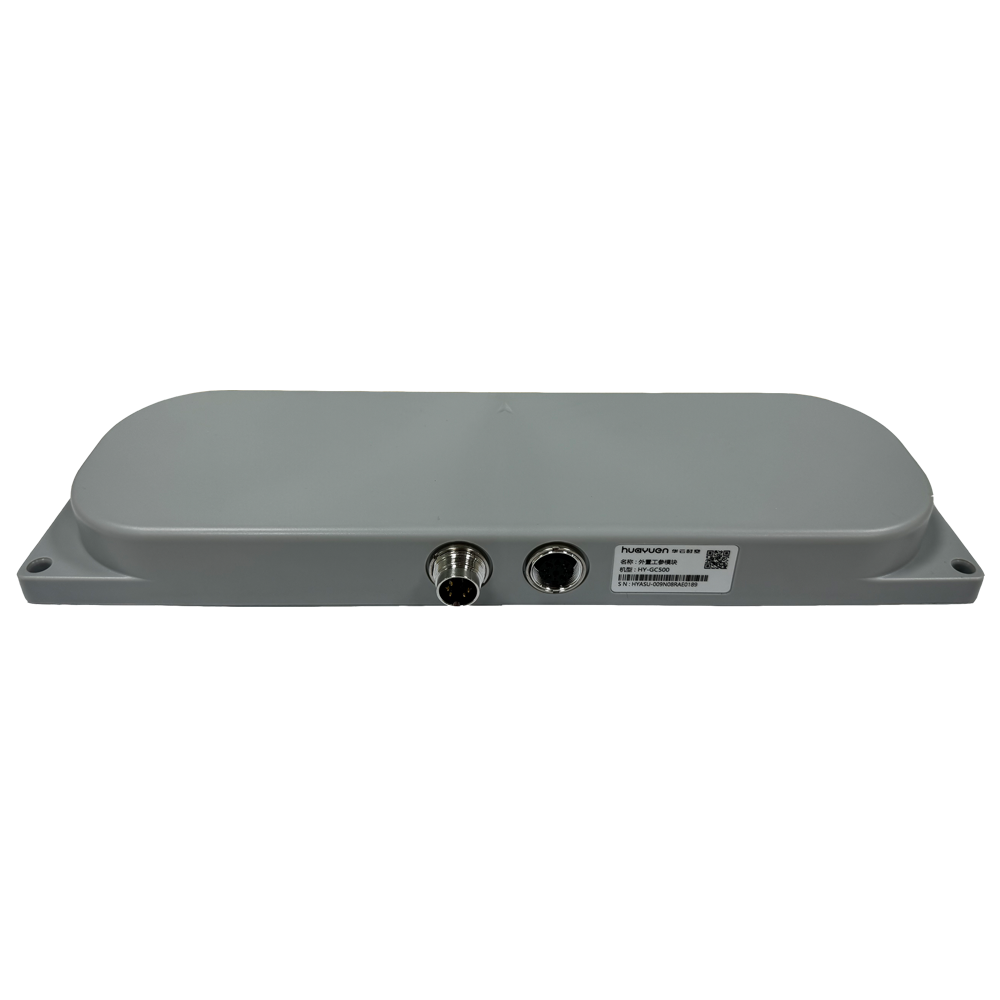

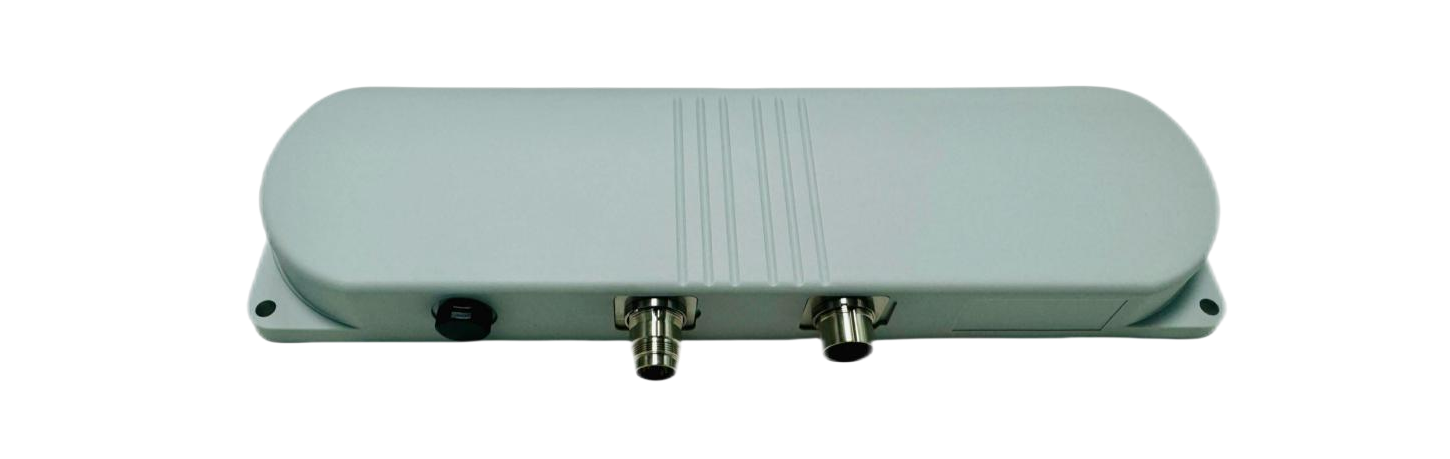

The External Antenna Survey Unit(ASU)is a highly integrated IoT device that utilizes GPS receiving chips to achieve location (longitude, latitude, elevation) and heading angle calculation. It is equipped with high-precision MEMS sensors for dynamic monitoring, tilt angle, and roll angle measurements, among other functions. It can be widely used in mobile communications industry, photovoltaics and other related fields.

Cases

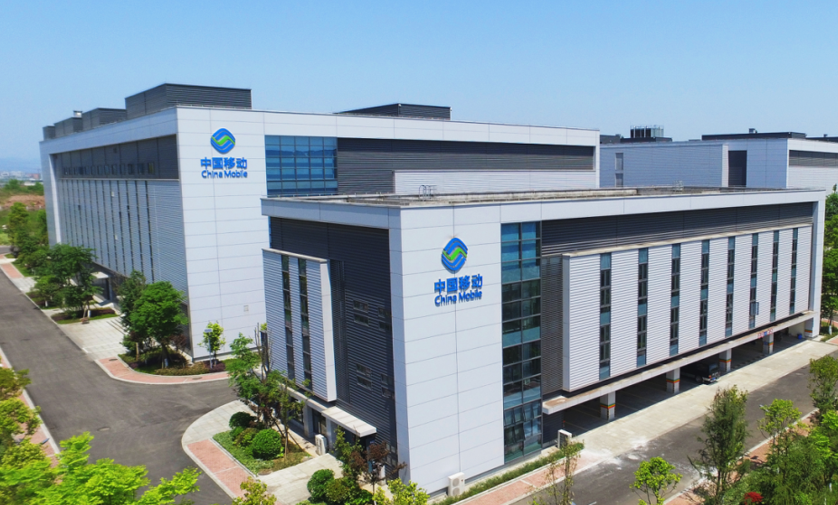

China Mobile Project

In 2023, the Huayuen Spatial External Antenna Component Perception Module demonstrated outstanding performance and stood out in the antenna testing conducted by the China Mobile Research Institute. After rigorous testing, all data passed the tests successfully and met the high standards. With its excellent performance, it received high praise and full recognition from the operator.

Overseas export project

The client is a global technology company specializing in wireless communication solutions, developing both standard and high-precision product solutions for customers. The product positioning accuracy is even higher, reaching up to 1e-7°, meeting the customers' extremely high requirements. This lays a solid foundation for customers to seize new opportunities in the industry, achieving cost reduction and efficiency improvement. The entire project was delivered promptly and quickly implemented.

He fei project

Plays a vital role in remote monitoring of antenna changes. This monitoring technology can track the attitude changes of the antenna in real time, including key parameters such as its direction, angle and position, ensuring that the antenna always maintains its best working condition.
