Features

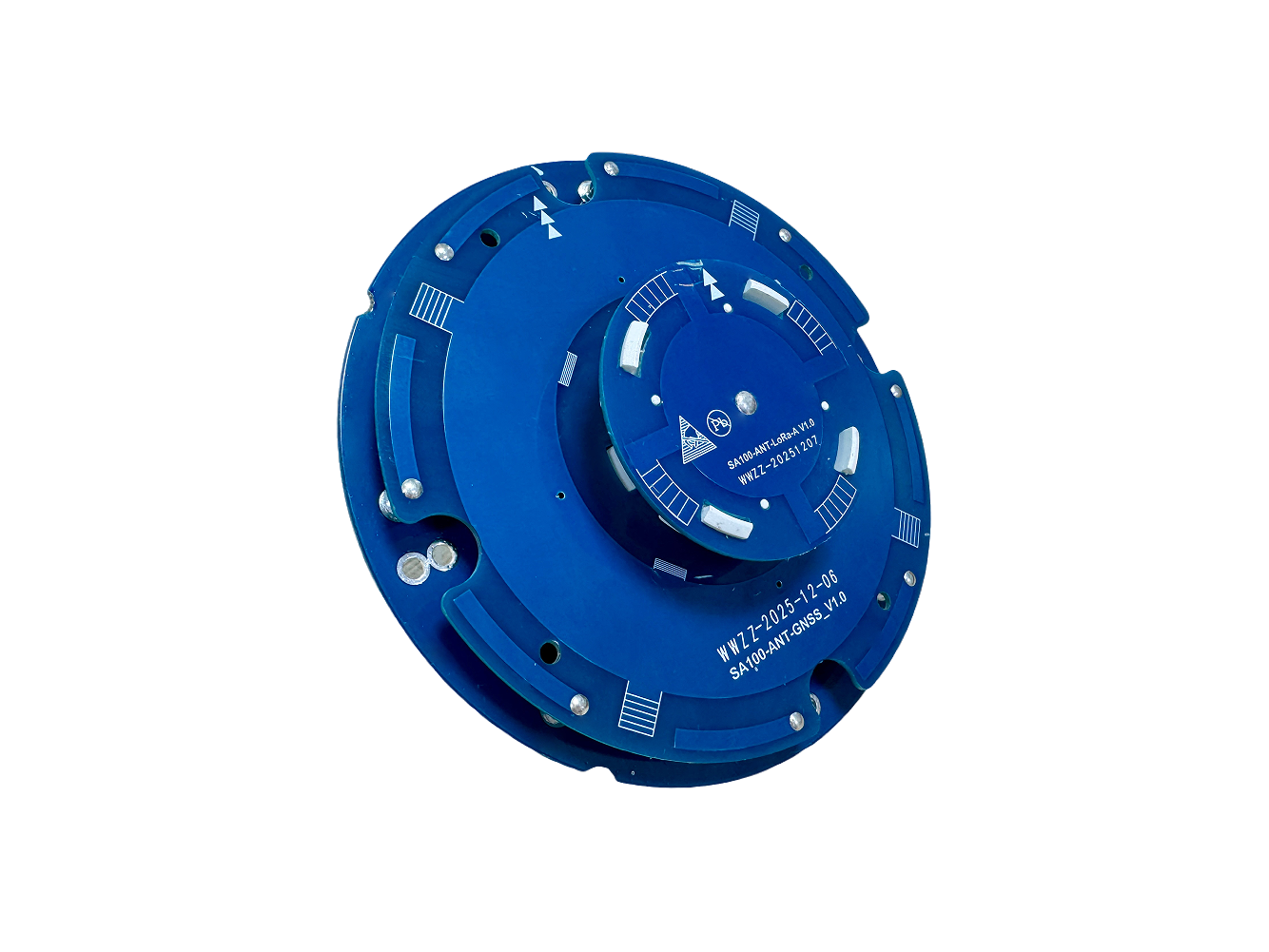

A full-frequency GNSS antenna with a highly stable phase center

It integrates a high-performance full-frequency GNSS chip and has narrowband anti-interference capability

Integrated LoRa chip, supporting custom protocol data transmission

Support the collaborative function of multiple base stations and multiple mobile stations

Specification parameters

Technical specifications

Accessory list

Structural dimensions

Physical parameters	Size Weight Color Power supply LED indicator light	≤Φ 120 mm * 35 mm or less < 130g blue 5V±5% The working indicator light is green
Power consumption parameter	Working average current Peak working current VBAT	＜210mA@ (5V & LoRa RX) ＜350 mA@ (5V & LoRa TX) ＜500mA@ (5V & LoRa RX) ＜800mA@ (5V & LoRa TX) ＜2mA/5V
Antenna parameters	GNSS LoRa	Phase center: ±2mm Maximum gain: 3dBi Maximum gain: 0dBi
Satellite reception performance parameters	GNSS satellite reception frequency points	B1I/B1C/L1CA/E1/G1/QZL1 B2a/L5/E5a/NavIC/QZL5 B2I/B2b/E5b/L2/QZL2 G2/B3I E6 HAS/QZL6 PPP-B2b SBAS L1CA
Positioning performance parameters	GNSS positioning	Horizontal accuracy (1σ) : PVT single point: 1.5m DGPS differential: 0.4m RTK differential: 1cm+1ppm Vertical accuracy (1σ) : PVT single point: 2.5m DGPS differential: 0.8m RTK differential: 1.5cm+1ppm
LoRa performance parameters	Transmission power Frequency	22dBm(Maximum, adjustable） 863-870MHz，902-928MHz
Reliability	Fall Vibration Working temperature Storage temperature Working humidity Anti-static grade	1.0m GJB150.16A -20℃ ~+60℃ -40℃ ~+85℃ 95%(Non-coagulation） IEC61000-4-2 Standard Level 4

Physical parameters

Size

Weight

Color

Power supply

LED indicator light

≤Φ 120 mm * 35 mm or less

< 130g

blue

5V±5%

The working indicator light is green

Power consumption parameter
