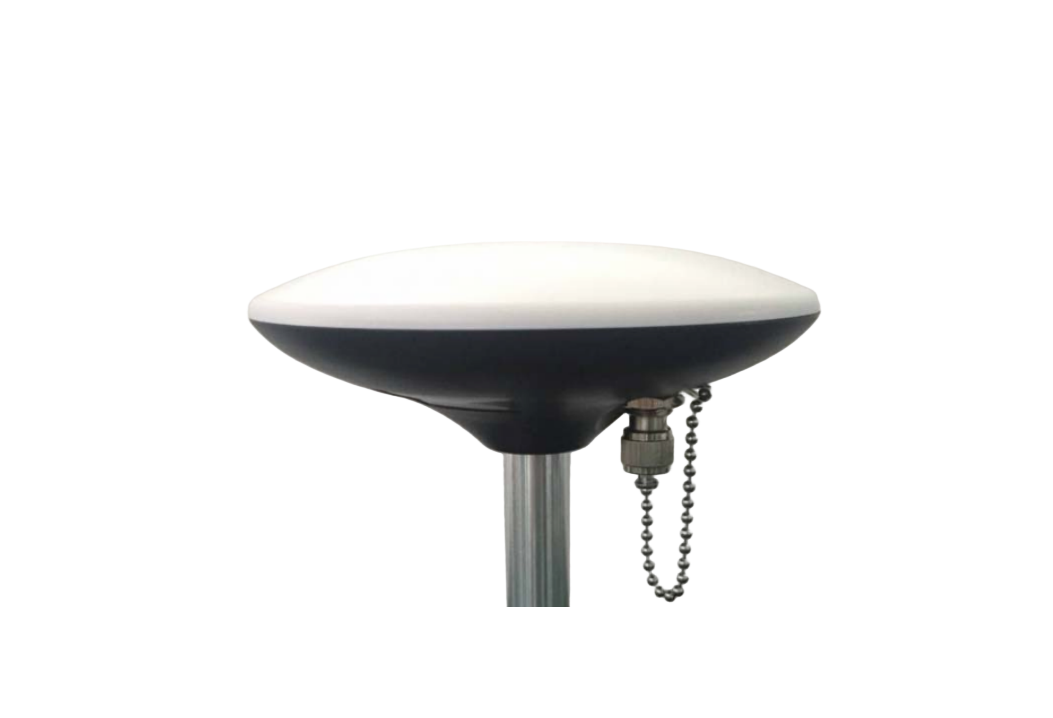

External High-Precision Measurement Antenna | HY-A504
Features
Specifications
Applications
External High-Precision Measurement Antenna | HY-A504
Features
Small phase center error and high measurement accuracy
High gain, wide beamwidth of the radiation pattern, and excellent signal reception performance
Strong anti-interference capability and can withstand complex and harsh working environments
High reliability, excellent water resistance, corrosion resistance and high temperature resistance


Specification parameters
Technical specifications
Accessory list
Structural dimensions

GNSS Antenna Performance Specifications

Frequency Range

Receiving Frequency Points











1165~1285MHz & 1559~1606MHz

BDS： B1I, B2I, B3I, B1C, B2a, B2b

GPS： L1C/A, L1C, L2C, L2P(Y), L5

GLONASS： G1, G2, G3

Galileo： E1, E5a, E5b, E6

QZSS： L1C/A, L1C, L2C, L5, L6

NavIC： L5

SBAS： L1/L5

IRNSS:  L5

Impedance

Antenna Axial Ratio

Horizontal Coverage Angle

Front-to-Back Ratio

Output VSWR

Peak Gain

Phase Center Error

Noise Figure

In-band Flatness

Active Gain

Operating Voltage

Operating Current

Differential Transmission Delay

50Ω

≤3dB

360°

≥15dB

≤2

≥5.5dBi

±2mm

≤2dB

±2dB

40±2dB

3.3~18V

≤45mA

≤5ns

Structural Characteristics

Antenna Weight

Antenna Dimensions

Connector Type

0.465kg

Φ145×58mm

TNC-K

Reliability

Working Temperature

Storage Temperature

Working Humidity

Protection Grade

-45℃∽+85℃

-55℃∽+85℃

95%(Non?condensing)

IP67

Application scenarios
In complex terrains such as mountainous areas and urban canyons, its full-band coverage capability enables simultaneous reception of multi-satellite signals, effectively solving the positioning interruption caused by signal blockage in a single system and ensuring centimeter-level measurement accuracy.
Learn more
As an external GNSS measurement antenna supporting full frequency bands of GPS, GLONASS, BDS and Galileo, it significantly improves the accuracy and reliability of surveying and mapping operations through a multi-system compatible design.
Learn more
Road Surveying and Mapping
Geodetic Survey
